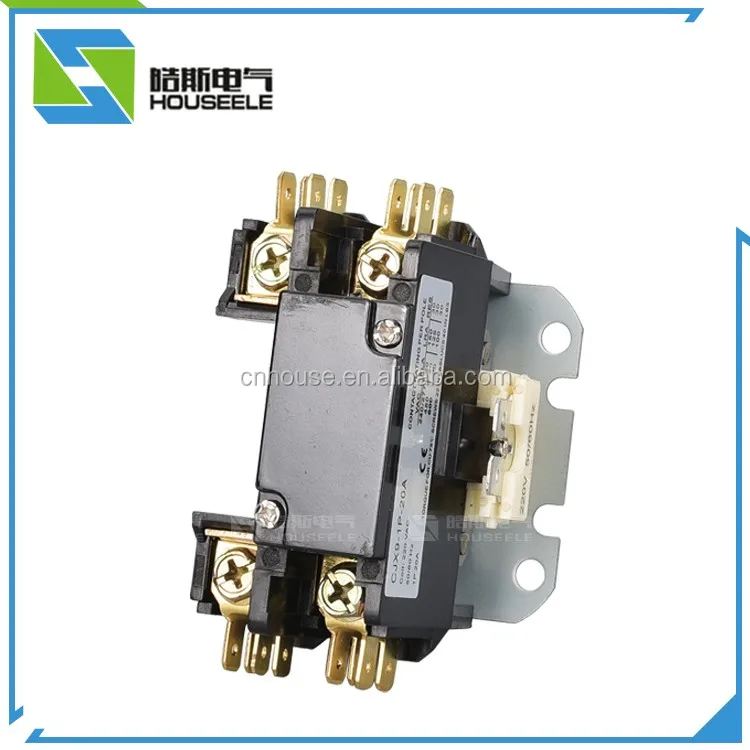

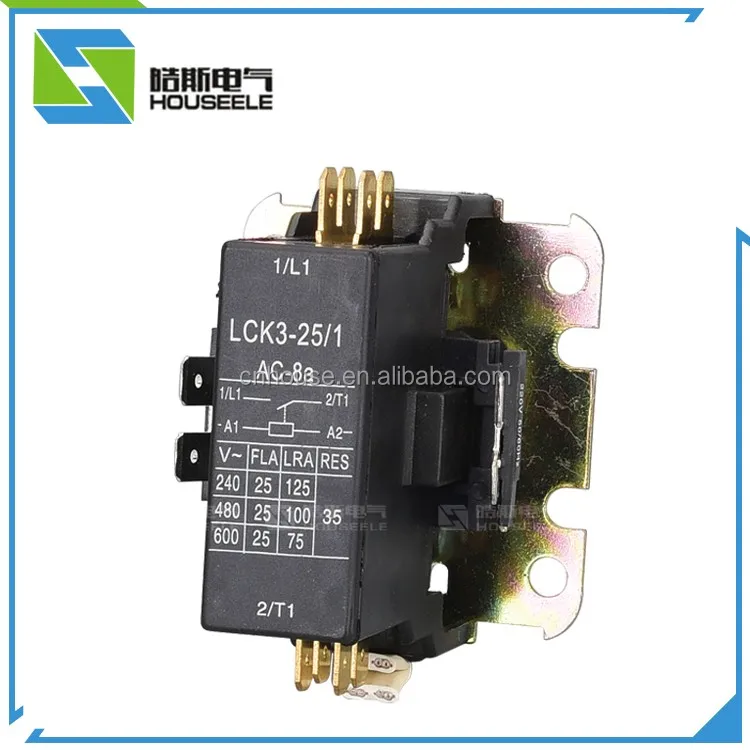

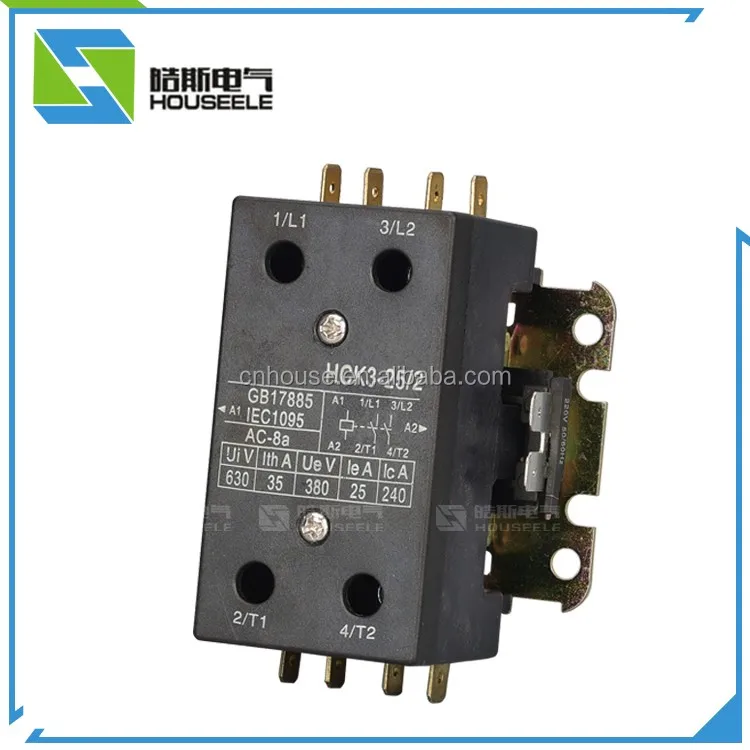

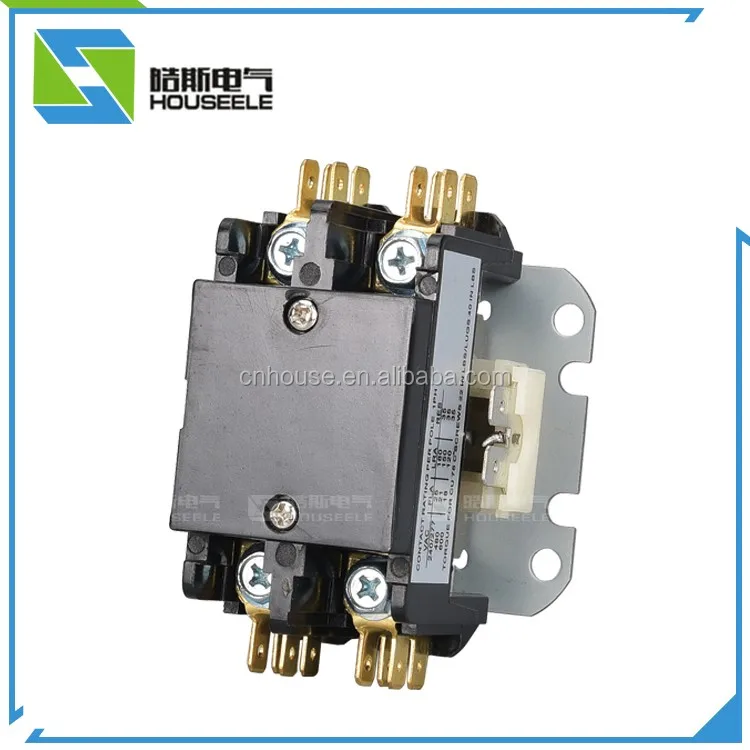

Air conditioner AC contactor HS-2S-25-24V
Features:
Straight-Through Wiring,Replaces 1 1/2Pole Devices Used Primarily in Residential Central Air Conditioning.
1`Replaces many Type 117 contactors used by OEM's.
2`Universal style mounting bracket fits existing mounting holes.
3`Screw terminals and 1/4" quick connect terminals for easy installation.
Working temperature:
Temperature: -20℃~110℃
Relative humidity:<95%
Specification:
1.Contactor coil Voltage:24V/110V/220VAC
2.Current:25A
| Coil Rating | 1 Pole Contactors | 2 Pole Contactors | ||||||
| Nominal Coil Voltage | 24 | 120 | 208/240 | 227 | 24 | 120 | 208/240 | 227 |
| Nominal Coil Resistance Ohms | 18 | 420 | 1800 | 2500 | 11 | 237 | 1000 | 1600 |
| Maximum Pick Up Voltage | 18 | 88 | 177 | 221 | 18 | 88 | 177 | 221 |
| Maximum Drop Out Voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 50-165 |
| Nominal Lnrush Va@50Hz | 31 | 31 | 31 | 31 | 33 | 33 | 33 | 33 |
| Nominal Lnrush Va@60Hz | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| Nominal Sealed Va@50Hz | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
| Nominal Sealed Va@60Hz | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Maximum Coil Voltage | 30 | 132 | 264 | 300 | 30 | 132 | 264 | 300 |
foam and strong carton packing.
