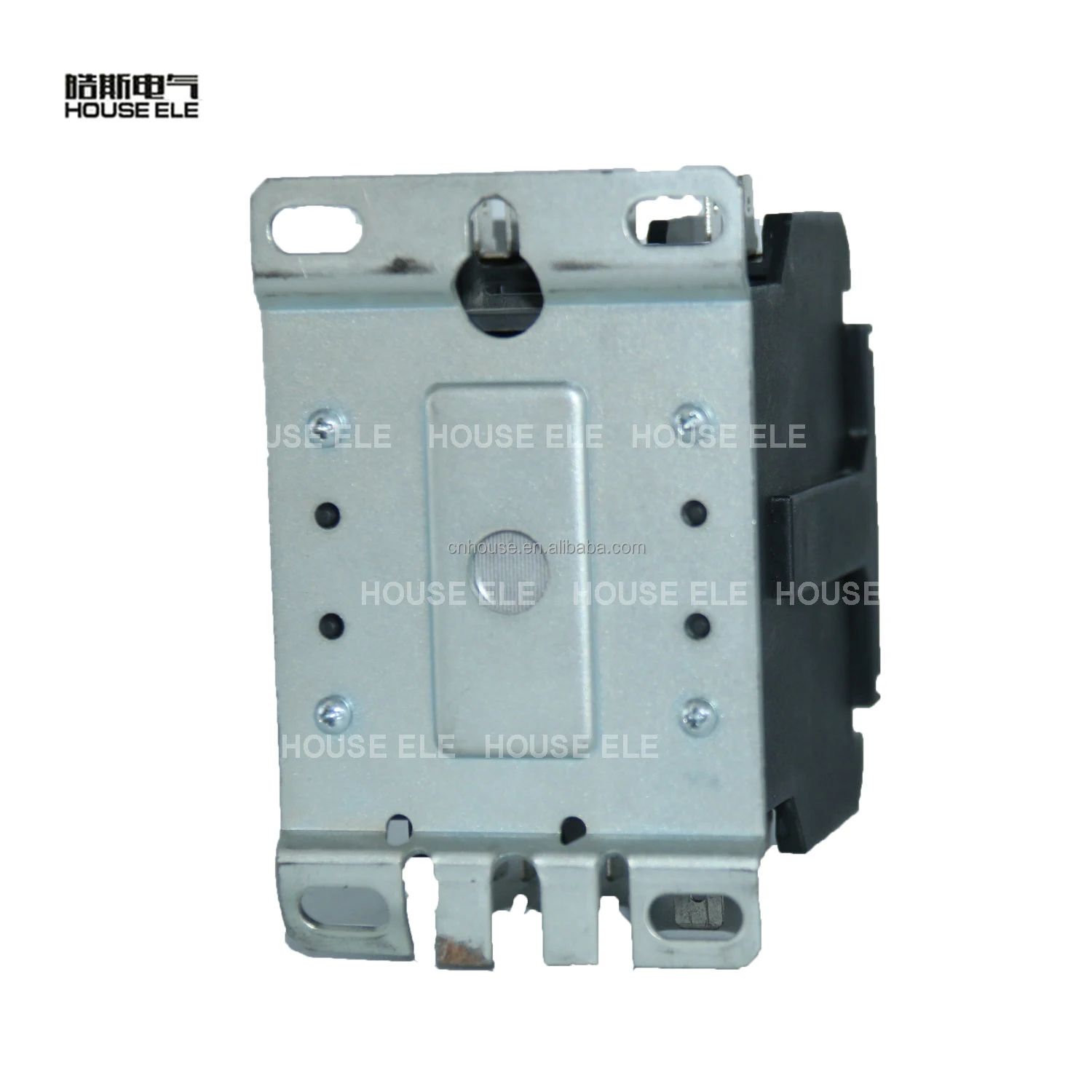

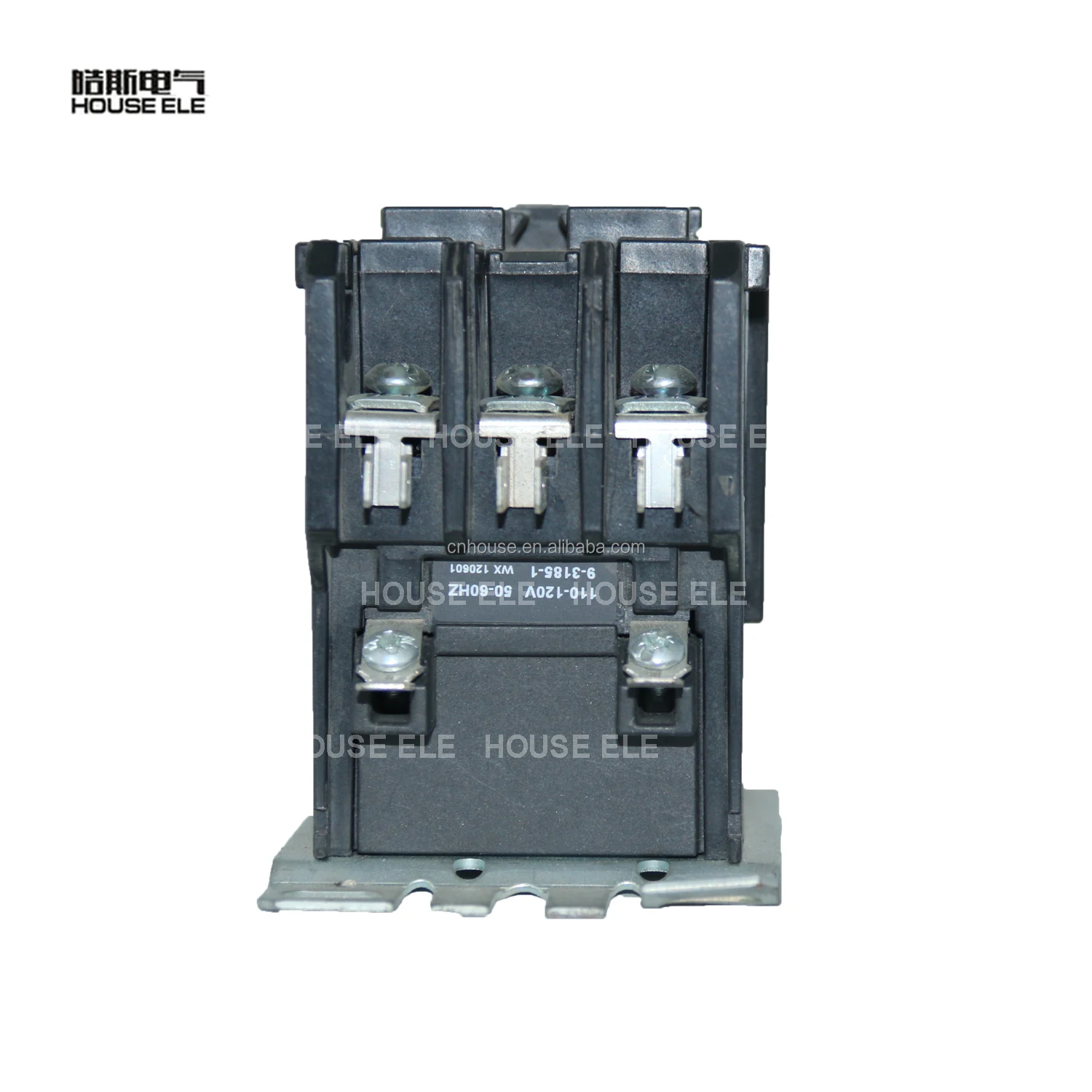

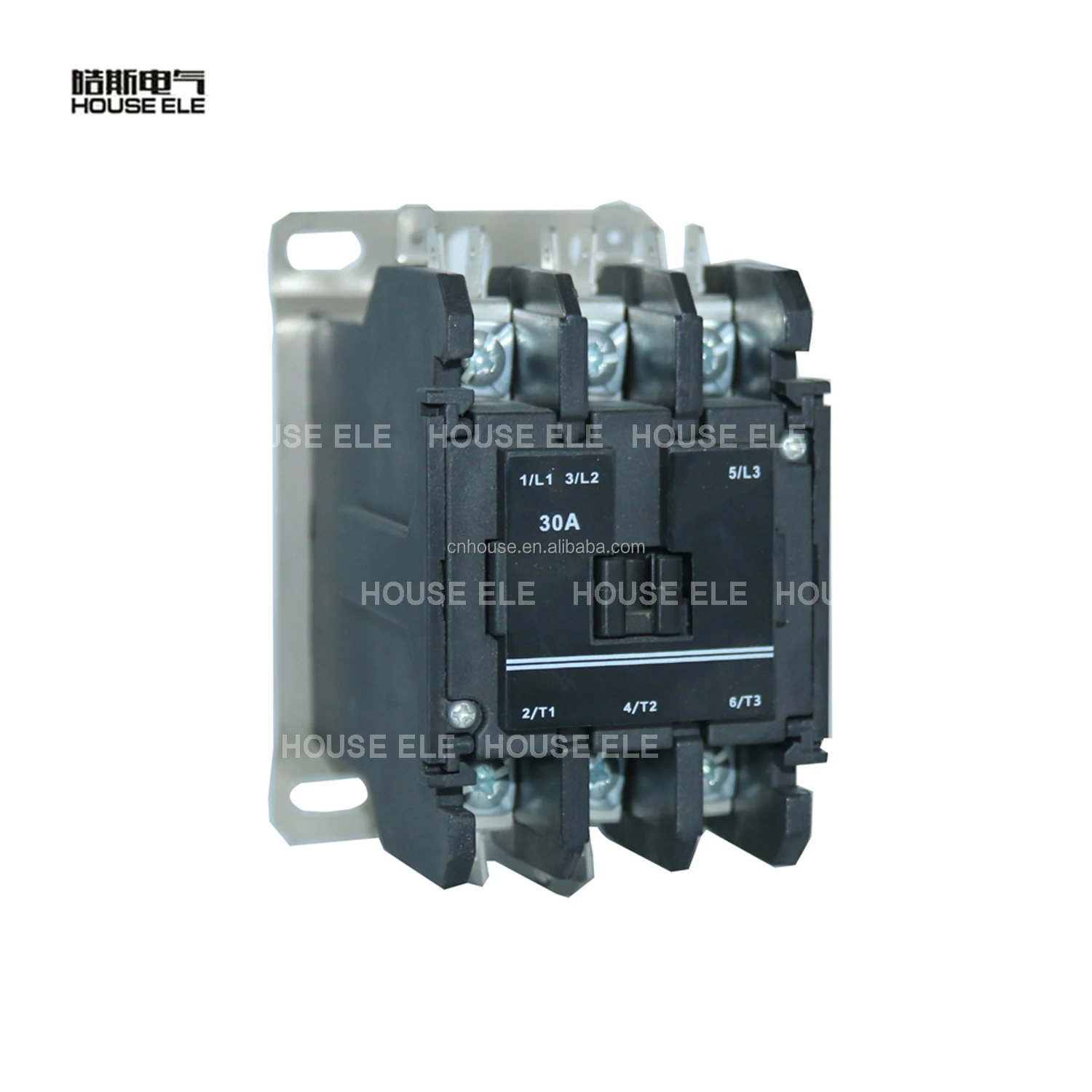

High quality air condintioner GE contactor
Agricultural pivot spare parts main control panel ETN AC contactor
Features :
Working temperature:air conditioner contactor
Temperature: -20℃~110℃
Relative humidity:<95%
Specification:
1.Contactor coil Voltage:110VAC
2.Current:25A
3.Used in irrigation system or air conditioner.
4.3 pole/4 pole,25A/30A/40A
| coil rating | 3 pole | 3pole | 3pole | 3 pole | 4 pole | 4 pole | 4 pole | 4pole |
| nominal coil voltage | 24 | 120 | 208/240 | 227 | 24 | 120 | 208/240 | 277 |
| norminal coli resistance ohms | 7 | 180 | 720 | 900 | 6 | 150 | 600 | 750 |
| max pick up voltage | 18 | 88 | 177 | 220 | 18 | 88 | 177 | 220 |
| max drop out voltage | 6-15 | 20-70 | 40-140 | 50-185 | 6-15 | 20-70 | 40-140 | 65-185 |
| nominal lnrush Va@50Hz | 65 | 65 | 65 | 65 | 62 | 62 | 62 | 62 |
| nominal lnrush Va@60Hz | 60 | 60 | 60 | 60 | 59 | 59 | 59 | 59 |
| nominal sealed Va@50Hz | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
| nominal sealed Va@60Hz | 6 | 6 | 6 | 6 | 7 | 7 | 7 | 7 |
| Max coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 264 | 300 |
