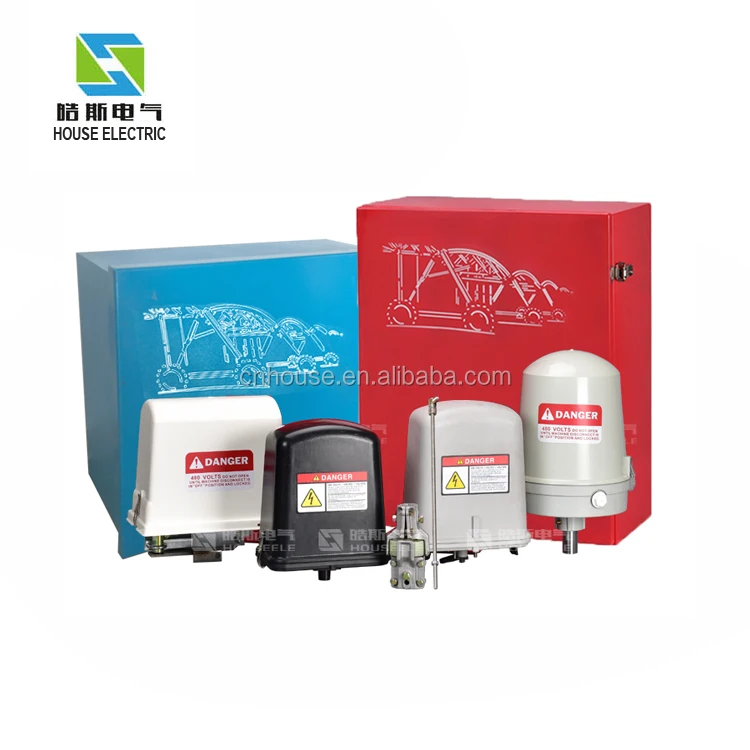

Farm irrigation system center pivot main control box
Feature:
1.Collector ring,Main control panel, Intermediate tower box,end tower box,and booster tower box,guide tower box
2.Galvanized steel construction,stainless steel shaft and bearing assembly helps to assure long time .
3.High quality electrical element and circuits to extend life
4.ABS tower box cover.
Specification:
.1.Working temperature:
2.Temperature: -20℃~80℃
3.Relative humidity:<95%
4.Contactor coil Voltage:110V/220VAC
5.Input voltage:380V/480V
6.Current :25A
Installation:
The collector ring is intalled on cneter pivot irrigator frame,by G1"
Tower box is Installed the through the mounting panel,if the mounting hole needs to be special,pls provide addtional drawings or instructions.
Features:
| heavy-duty frame and cover | plated latches |
| heavy-duty electric component | easy installation |
| zinc-plated cam shaft | different types |
| wather and chemical-resistant bearing | |
| heavy-duty,impact and sunlight-resistant control box |
Electric controlers parts:
| collector rings 11 lines 8120 | collector ring 11 rings HS-152 |
| micro switch short arms | micro switch long arms |
| tower box for valley system HS-158 | tower box for lindsay system HS-8102 |
| BK transformer | JBK5 transformer |
| changeover switch LW series | toggle switch |
| AC contactor LC1-D series | AC contactor GE model |
| Relays | timer |
| Control box panel HS-8000 |
