Agriculture Machinery parts slip ring

Product Description

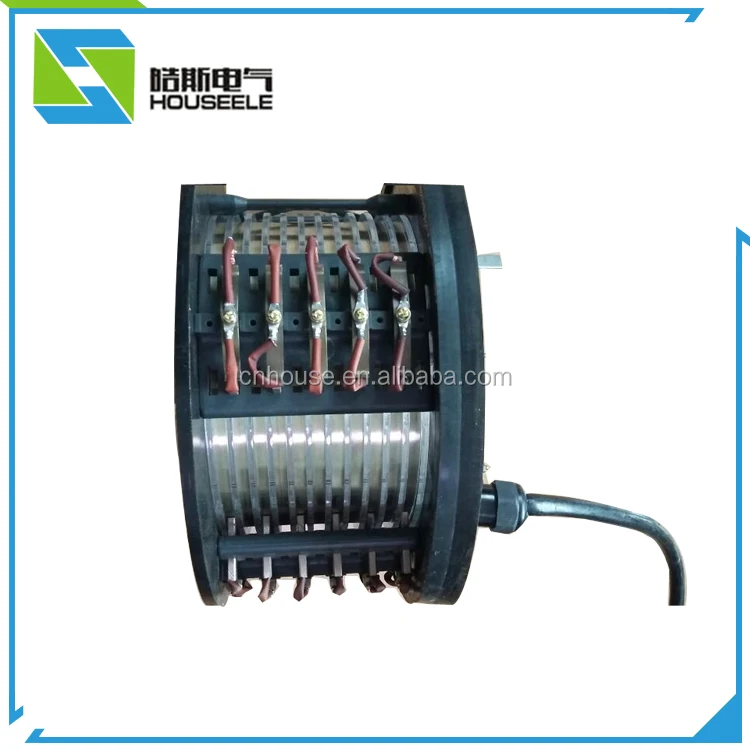

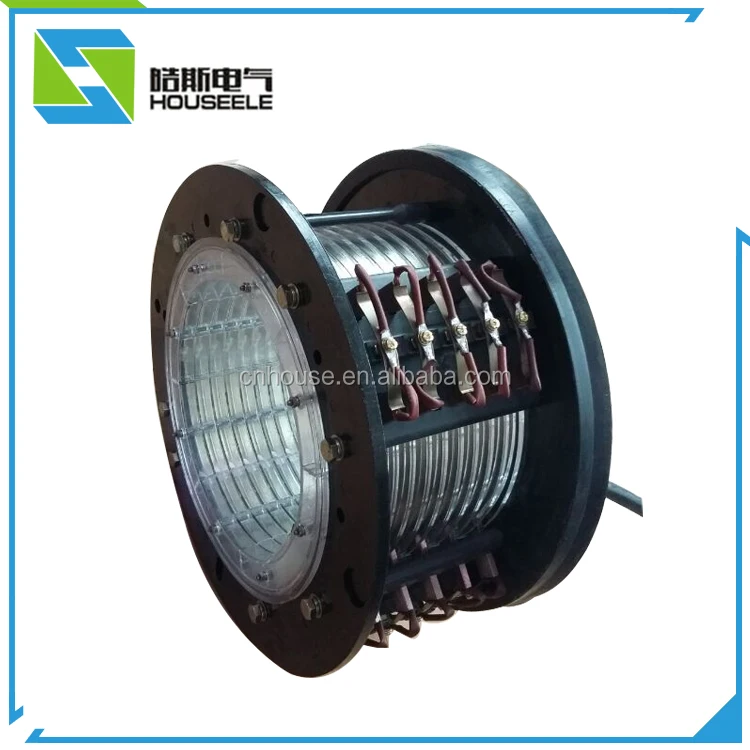

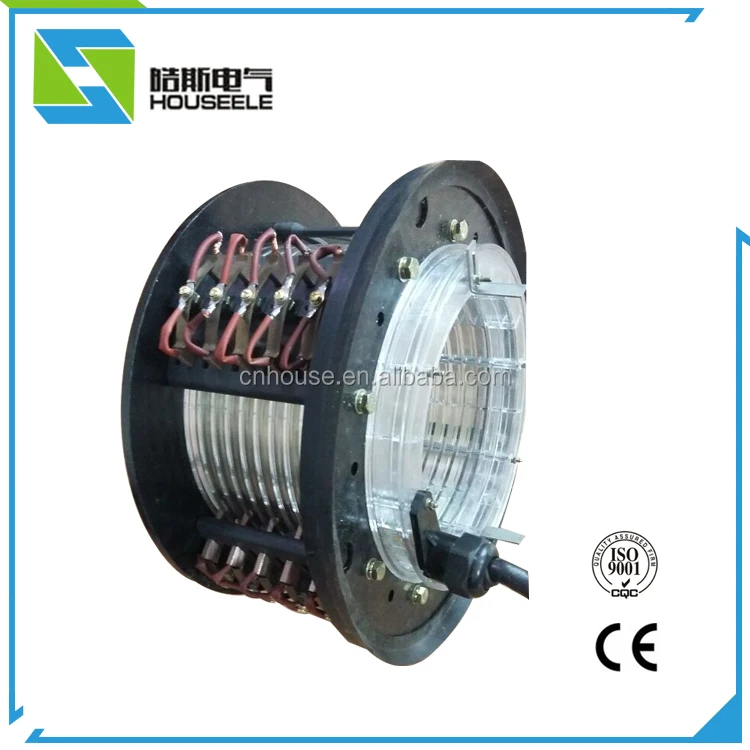

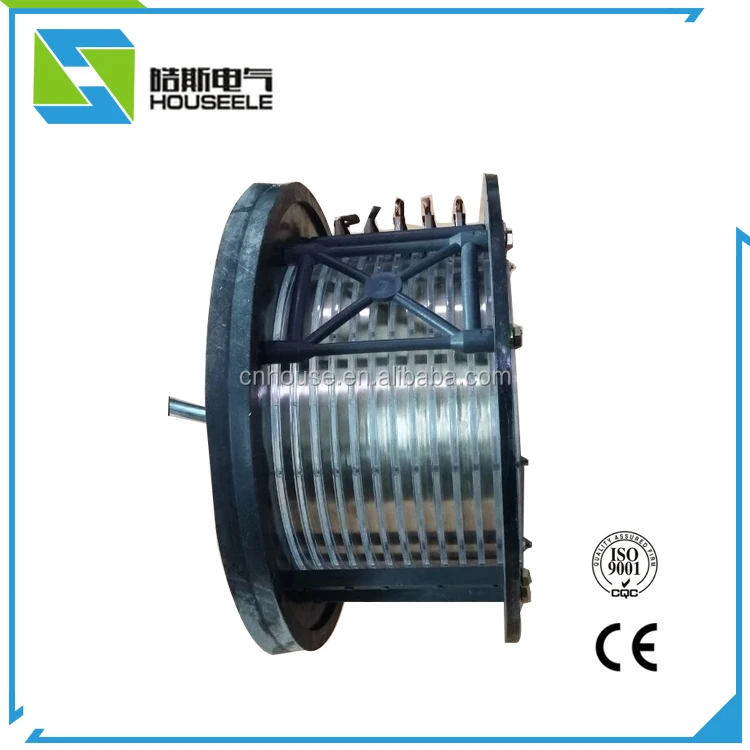

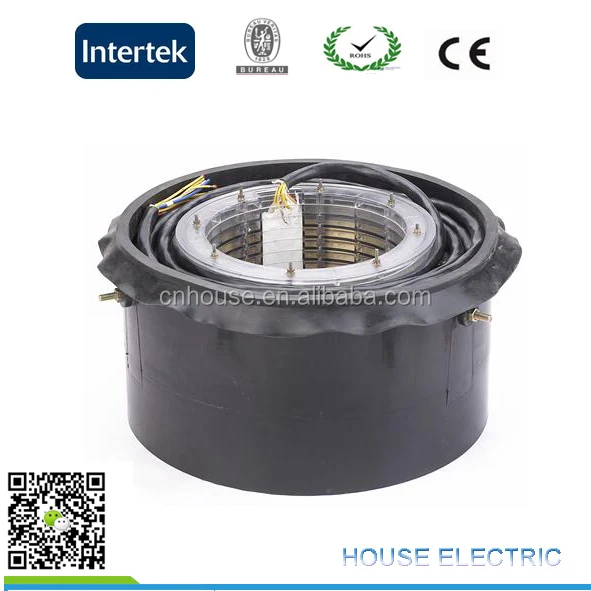

Model No.: HS-8180 collector ring

Working condition:

Working temperature:

Temperature: -20℃~80℃

Relative humidity:<95%

Specification:

1.Dynamic contact resistance:<10mΩ

2.Voltage:0-480V/240VAC

3.Current:@25Amp per ring

4.Contact material:brass & Carbon brush

5.House material:metal base & ABS cover/aluminium cover

Maintenance Mode:

1.The slip ring could not exceed the rated current and voltage when working.

2.The whole carbon brush set should be changed when the 2/3 original used out.

3.Long term storaged product should be rotated 5-10 minutes with no-load and then plus load before use.

4.Accesorries:we provide 11b cable connectors cover

Drawing:

Features:

heavy-duty frame and cover	plated latches
heavy-duty electric component	easy installation
zinc-plated cam shaft	different types
wather and chemical-resistant bearing
heavy-duty,impact and sunlight-resistant control box

Electric controlers parts:

collector rings 11 lines 8120	collector ring 11 rings HS-152
micro switch short arms	micro switch long arms
tower box for valley system HS-158	tower box for lindsay system HS-8102
BK transformer	JBK5 transformer
changeover switch LW series	toggle switch
AC contactor LC1-D series	AC contactor GE model
Relays	timer
Control box panel HS-8000
