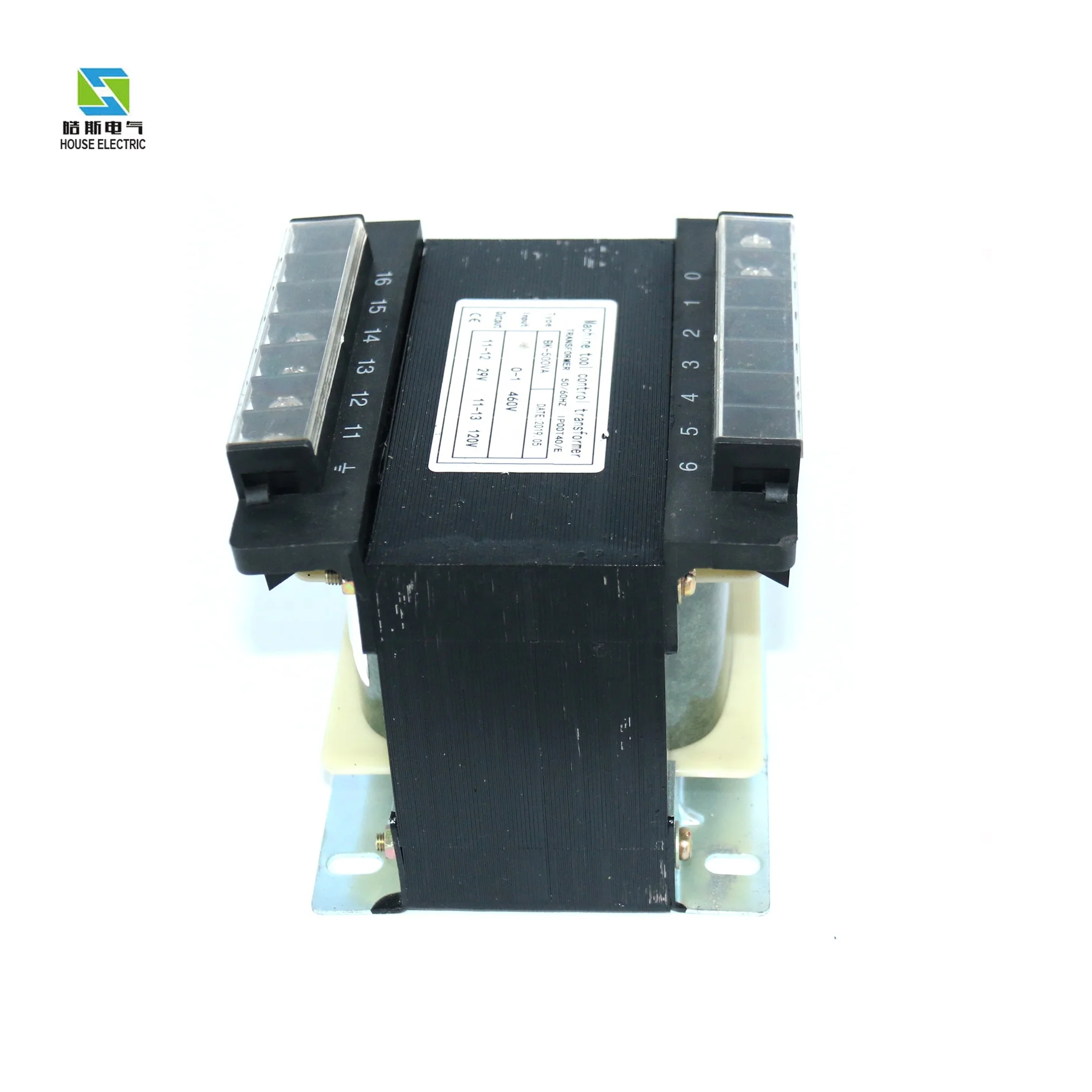

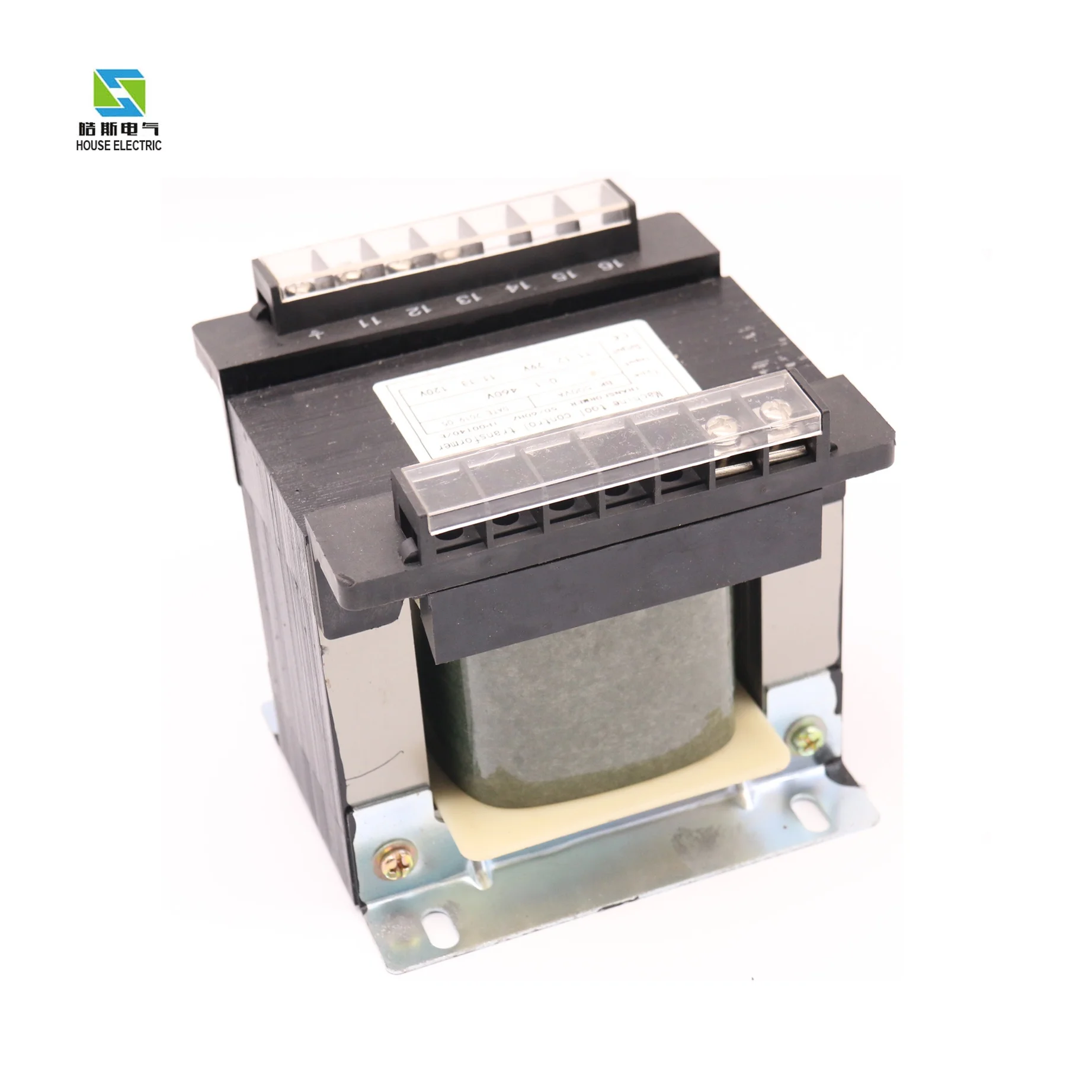

Low voltage irrigation system electrical parts main control panel transformer BK-500VA

BK series machine tool control transformer is a kind of new product by reference to sample of SIMENS Company, it accords with standards like VDE0550, IEC204-1, IEC439, GB5226, etc. It is suitable for AC circuit of 50 ~ 60Hz, output rated voltage ess than 220V , input rated voltage less than 500V, worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.

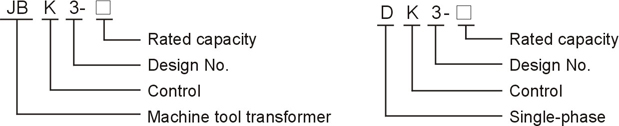

Model and its meaning (JBK3(DK3)machine tool control transformer)

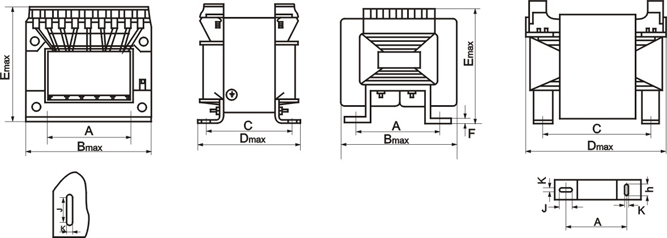

Overall size (JBK3(DK3)machine tool control transformer)

Installation size (JBK3(DK3)machine tool control transformer)

Model	Overall size(mm)			Hole distance for installation(mm)		Installation hole K or K×J(mm)	Fmax (mm)
Model	Bmax	Dmax	Emax	A	C	Installation hole K or K×J(mm)	Fmax (mm)
JBK3-40,63	78	72	89	56±0.4	51±2	4.8×9	12
JBK3-100	85	85	94	64±0.4	66±2	4.8×9	12
JBK3-160	96	91	109	84±0.4	73±2	5.8×11	14
JBK3-250	96	105	109	84±0.4	87±2	5.8×11	14
JBK3-400	120	109	123	90±0.4	90±2	7×12	18
JBK3-630	150	112	150	122±0.5	90±2	7×12	22
JBK3-1000	160	195	151	126±2	152±2	7×12	18
JBK3-1600	184	220	163	140±2	176±2	7×12	18
JBK3-2500	200	250	171	172±2	200±2	7×12	18
