How do collector rings improve the efficiency of pivot irrigation systems?

Ensuring Reliable Power Transmission in Rotating Irrigation Systems

Understanding the role of collector rings in maintaining continuous electrical contact

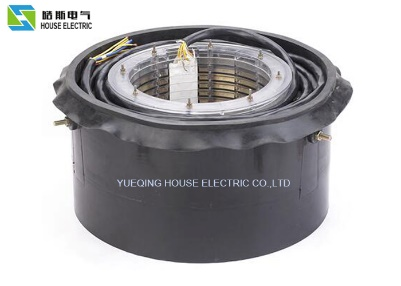

Collector rings serve as the critical interface between stationary power sources and rotating irrigation spans. Their concentric conductive tracks and spring-loaded brushes maintain constant electrical connectivity during continuous 360° pivoting. Modern designs use silver-graphite composite materials, which exhibit 92% lower contact resistance than legacy copper systems (Irrigation Tech Quarterly 2023).

How collector rings prevent power interruptions during system rotation

Traditional hard-wired connections typically fail within 150–200 operational hours due to repetitive torsional stress. Collector rings eliminate this issue by:

• Preventing cable twisting through rotational isolation
• Maintaining consistent contact pressure via automatic brush wear compensation
• Incorporating multiple parallel circuits for redundant power delivery

This design ensures uninterrupted power flow even under prolonged rotational motion.

Data insight: Up to 78% reduction in voltage fluctuation with high-quality collector rings

A 2023 field study across 47 center-pivot systems found that precision-engineered collector rings reduced motor voltage variances from ±15% to ±3.3%. This stabilization leads to significant performance gains:

• 14% fewer pump motor failures
• 22% lower energy consumption per irrigation cycle
• 31% longer brush lifespan compared to economy-grade components

These improvements directly enhance system reliability and efficiency.

Integration of Collector Rings in Center Pivot and Lateral Move Systems

Key Applications of Collector Rings in Modern Pivot Irrigation Setups

Collector rings play a critical role in modern irrigation setups by ensuring steady power delivery through those rotating connections. For center pivot systems, these components make possible that complete 360 degree spin while keeping all the necessary pumps and electronic controls running smoothly. Farmers using lateral move systems find them just as valuable too. Without collector rings, cables would get hopelessly tangled as equipment moves back and forth across long stretches of land. Think about those big rectangular fields that stretch over half a mile one way - without proper cable management solutions like collector rings, operations would come to a grinding halt pretty quickly.

Performance Comparison: Collector Rings vs. Traditional Wiring in Dynamic Environments

Field tests show collector rings reduce connection failures by 65% compared to traditional wiring methods (Agricultural Engineering International, 2023). This durability arises from:

• Multi-contact brush systems that accommodate alignment shifts
• Sealed housings that block dust and moisture
• Wear-resistant surfaces requiring no lubrication

While conventional wiring fails within 12–18 months under constant movement, quality collector rings typically last over five years in demanding corn and wheat irrigation cycles.

Case Study: 30% Increase in System Uptime After Collector Ring Upgrade on Nebraska Farms

A 2023 Midwestern farm study tracked performance after retrofitting 14 center pivots with advanced collector rings:

Farm managers noted fewer electrical faults during peak seasons, with automated alerts enabling proactive maintenance before major failures occurred.

Powering Smart Irrigation: Enabling IoT Sensors and Automated Controls

How Collector Rings Support Wireless Data Transmission and Remote Monitoring

Collector rings these days keep power flowing to those IoT sensors mounted on rotating arms, so farmers get good data without all the messy cables getting twisted up. Most systems out there can handle around 12 thousand soil moisture checks each day. What makes this work is how these rings maintain solid electrical contact even when things spin almost all the way around (about 340 degrees). This lets important farming data go straight to the cloud in real time. And speaking of importance, recent research shows that nearly four out of five irrigation decisions are based on information from wireless sensors nowadays. Makes sense why farmers want their equipment to stay connected no matter what.

Smart Collector Rings With Embedded Diagnostics and Real-Time Alerts

Next-generation models include self-monitoring features validated in a 2024 University of Nebraska-Lincoln trial, showing predictive accuracy within 5%. Integrated current sensors detect arc faults in under 0.2 seconds, while temperature monitoring tracks brush degradation. Farmers receive SMS alerts when thresholds are exceeded, reducing diagnostic site visits by 40–60% in reported deployments.

Modular Designs for Scalable, Future-Ready Farm Automation

Leading manufacturers offer stackable collector ring units that support incremental technology adoption. A base unit handling 20A power can integrate bolt-on modules for:

• CAN bus controls (up to 1 Mbps data rates)
• LoRaWAN gateways (10 km rural coverage)
• 5G NR repeaters (sub-10 ms latency)

This modularity addresses the need for backward compatibility, especially important as 63% of existing irrigation equipment must interoperate with new technologies (2024 agritech survey).

Advanced Design Features: Sealed and Maintenance-Free Collector Rings

Sealed, Corrosion-Resistant Construction for Durability in Harsh Agricultural Environments

Today's collector rings come equipped with multiple layers of sealing that meet IP67 standards, keeping dust, moisture and harsh chemicals away from sensitive parts inside. The combination of stainless steel cores with polymer materials makes these devices capable of handling pretty brutal temperature ranges from -40 degrees Fahrenheit all the way up to 250 degrees, while also standing up against corrosion caused by common fertilizers and irrigation solutions we see out there in the field. According to actual field reports, when collectors are properly sealed rather than left open, operators experience around two thirds fewer problems related to bad weather conditions over time.

Benefits of Maintenance-Free Operation in Remote or High-Utilization Settings

Maintenance-free collector rings eliminate the need for lubrication and component replacement for 5–7 years—essential for systems running continuously during growing seasons. Farms using these designs save an estimated $740/acre annually (Ponemon 2023) by avoiding:

• 3–5 scheduled downtimes per year for contact cleaning
• Premature motor replacements due to voltage instability
• Labor costs tied to troubleshooting intermittent connections

Dust-proof interfaces ensure dependable operation in arid or high-particulate environments, with 92% of users reporting no service interventions in the first three years.

Maximizing System Efficiency and ROI with High-Performance Collector Rings

High-performance collector rings deliver measurable financial returns by optimizing energy transfer and minimizing operational disruptions in pivot irrigation systems. These precision-engineered components address both maintenance expenses and reliability challenges, directly improving farm profitability.

Reducing Downtime and Repair Costs Through Reliable Electrical Connectivity

Voltage fluctuations in traditional systems contribute to 38% of unplanned agricultural downtime (Agricultural Electrification Report 2023). Modern collector rings maintain stable electrical connectivity across rotating joints, reducing arc-induced damage by 79%. This reliability translates into fewer service interruptions and extended maintenance intervals—critical advantages during time-sensitive irrigation windows.

Long-Term Operational Savings and Sustainability Benefits

The adoption of maintenance-free, corrosion-resistant collector rings reduces annual upkeep costs by $18–$25 per acre in commercial farming operations. A 2022 Midwest irrigation network study showed farms using advanced designs achieved:

These systems support sustainable agriculture by eliminating lubricant runoff and minimizing energy waste. Recent innovations in circular economy manufacturing now allow end-of-life component recycling, further enhancing environmental performance while protecting long-term operational budgets.

FAQ

What are collector rings in irrigation systems?

Collector rings are components used in irrigation systems to provide continuous electrical contact between stationary power sources and rotating parts of the system, ensuring reliable power transmission.

How do collector rings prevent power interruptions?

Collector rings prevent power interruptions by isolating cables from twisting, maintaining consistent contact pressure with automatic brush compensation, and using multiple parallel circuits for redundant power delivery.

What benefits do high-quality collector rings offer?

High-quality collector rings reduce voltage fluctuations, enhance motor lifespan, lower energy consumption, and decrease pump motor failures, contributing to overall system efficiency and reliability.

How do collector rings support smart irrigation solutions?

Collector rings enable smart irrigation by providing stable power to IoT sensors and supporting wireless data transmission, which allows real-time monitoring and decision-making in irrigation management.

Are collector rings maintenance-free?

Yes, modern collector rings are designed to be maintenance-free, eliminating the need for regular lubrication and component replacement, which is beneficial for systems running continuously.
